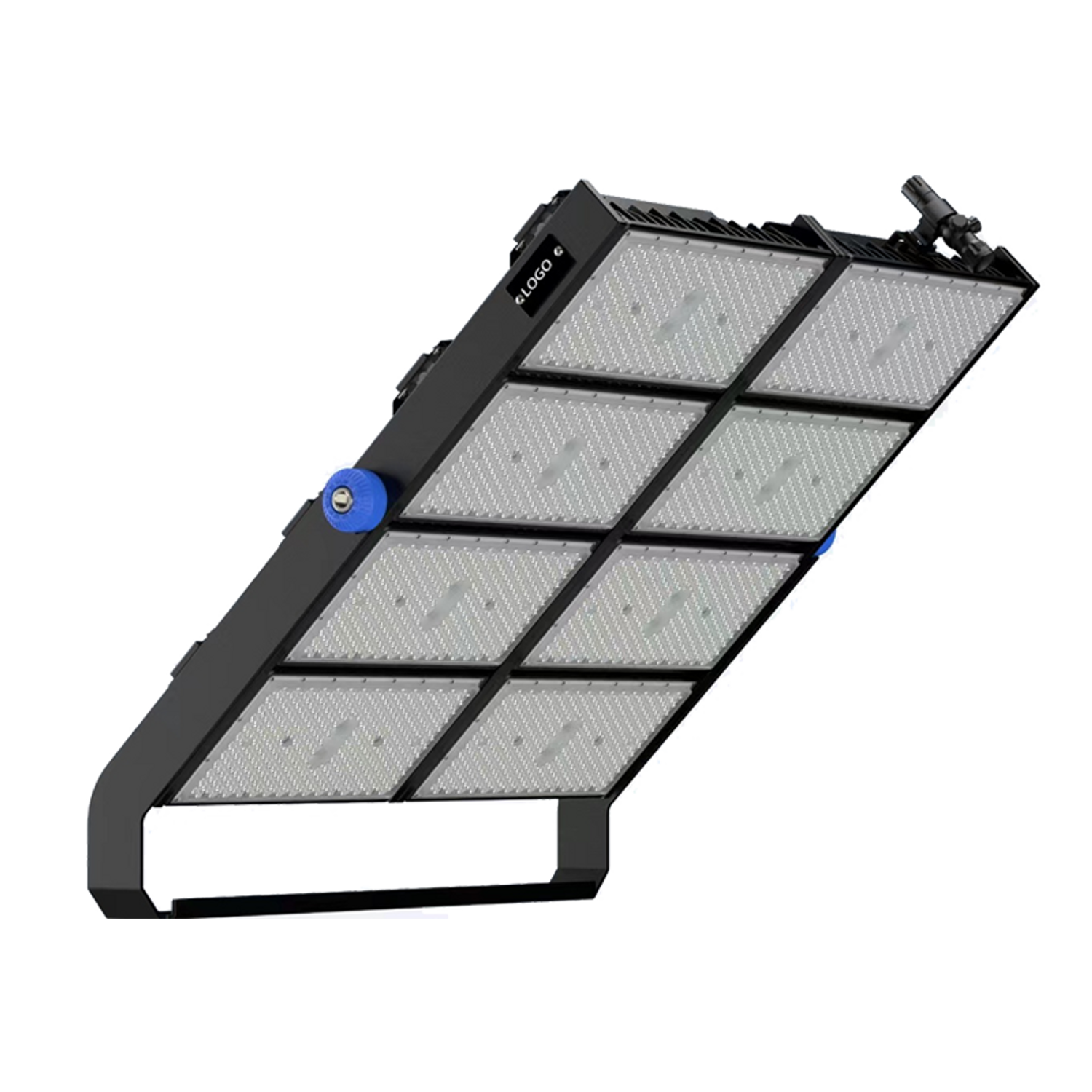

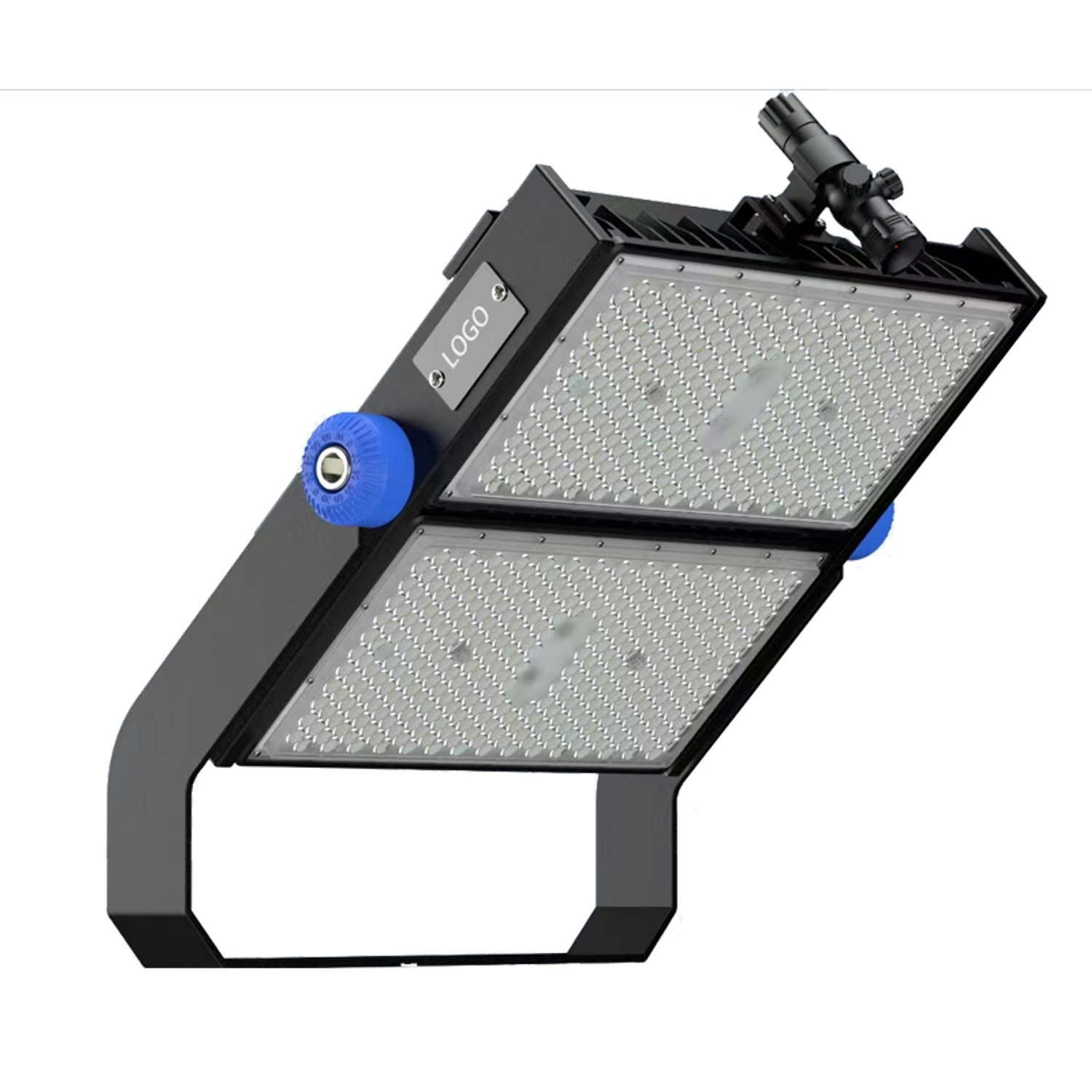

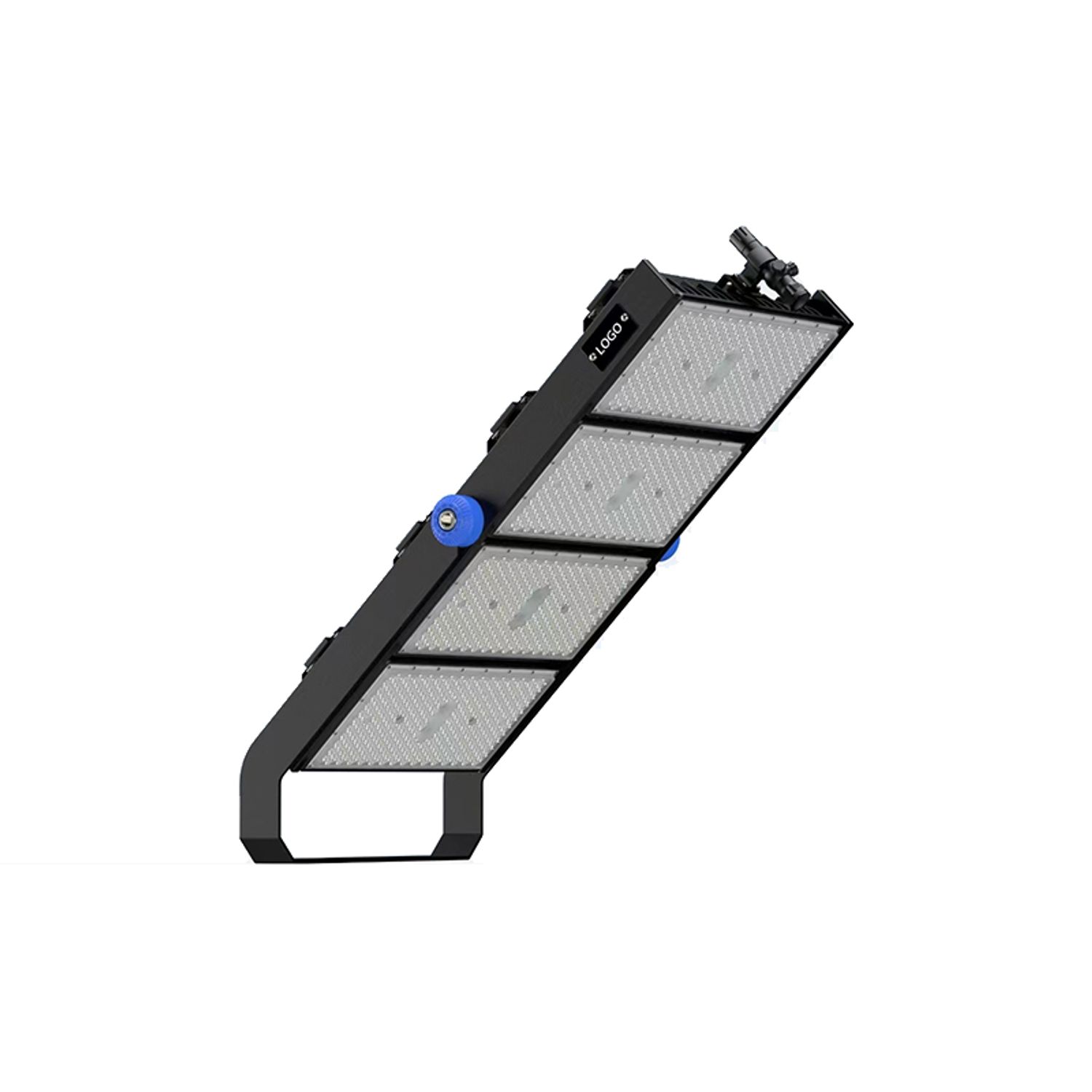

AFL70 is a new type of module flood light fixture, which supports up to 8 modules, corresponding to 8 different powers from 250W to 2500W, which can meet the different power requirements of customers and achieve the optimal cost.
Product Model | Wattage | Input Voltage | Luminous Efficacy(MAX) | RA | Color Temperature | Beam Angle | PF | Life Time | Dimension(mm) |
AFL70-A | 250W |
AC85-305V AC450-480V |
150Lm/W |
>70|80|90 | 2200-6500K | 15°|30°|45°|60°|90°|120° | >0.9 | 100000 Hours | 436*284*163 |
AFL70-B | 500W |
AC85-305V AC450-480V |
150Lm/W |
>70|80|90 | 2200-6500K | 15°|30°|45°|60°|90°|120° | >0.9 |
100000 Hours |
436*499*183 |
AFL70-C | 750W |
AC85-305V AC450-480V |
150Lm/W |
>70|80|90 | 2200-6500K | 15°|30°|45°|60°|90°|120° | >0.9 | 100000 Hours | 464*689*183 |
AFL70-D | 1000W |
AC85-305V AC450-480V |
150Lm/W |
>70|80|90 | 2200-6500K | 15°|30°|45°|60°|90°|120° | >0.9 | 100000 Hours | 464*879*183 |
AFL70-E | 1250W |
AC85-305V AC450-480V |
150Lm/W |
>70|80|90 | 2200-6500K | 15°|30°|45°|60°|90°|120° | >0.9 | 100000 Hours | 464*1068*183 |
AFL70-F | 1500W |
AC85-305V AC450-480V |
150Lm/W |
>70|80|90 | 2200-6500K | 15°|30°|45°|60°|90°|120° | >0.9 | 100000 Hours | 865*692*189 |
AFL70-G | 2000W |
AC85-305V AC450-480V |
150Lm/W |
>70|80|90 | 2200-6500K | 15°|30°|45°|60°|90°|120° | >0.9 | 100000 Hours | 865*882*189 |
AFL70-H | 2500W |
AC85-305V AC450-480V |
150Lm/W |
>70|80|90 | 2200-6500K | 15°|30°|45°|60°|90°|120° | >0.9 | 100000 Hours | 865*1072*189 |
AFL70 is a new type of module flood light fixture, which supports up to 8 modules, corresponding to 8 different powers from 250W to 2500W, which can meet the different power requirements of customers and achieve the optimal cost.
Product Model | Wattage | Input Voltage | Luminous Efficacy(MAX) | RA | Color Temperature | Beam Angle | PF | Life Time | Dimension(mm) |
AFL70-A | 250W |
AC85-305V AC450-480V |
150Lm/W |
>70|80|90 | 2200-6500K | 15°|30°|45°|60°|90°|120° | >0.9 | 100000 Hours | 436*284*163 |
AFL70-B | 500W |
AC85-305V AC450-480V |
150Lm/W |
>70|80|90 | 2200-6500K | 15°|30°|45°|60°|90°|120° | >0.9 |
100000 Hours |
436*499*183 |
AFL70-C | 750W |
AC85-305V AC450-480V |
150Lm/W |
>70|80|90 | 2200-6500K | 15°|30°|45°|60°|90°|120° | >0.9 | 100000 Hours | 464*689*183 |
AFL70-D | 1000W |
AC85-305V AC450-480V |
150Lm/W |
>70|80|90 | 2200-6500K | 15°|30°|45°|60°|90°|120° | >0.9 | 100000 Hours | 464*879*183 |
AFL70-E | 1250W |
AC85-305V AC450-480V |
150Lm/W |
>70|80|90 | 2200-6500K | 15°|30°|45°|60°|90°|120° | >0.9 | 100000 Hours | 464*1068*183 |
AFL70-F | 1500W |
AC85-305V AC450-480V |
150Lm/W |
>70|80|90 | 2200-6500K | 15°|30°|45°|60°|90°|120° | >0.9 | 100000 Hours | 865*692*189 |
AFL70-G | 2000W |
AC85-305V AC450-480V |
150Lm/W |
>70|80|90 | 2200-6500K | 15°|30°|45°|60°|90°|120° | >0.9 | 100000 Hours | 865*882*189 |
AFL70-H | 2500W |
AC85-305V AC450-480V |
150Lm/W |
>70|80|90 | 2200-6500K | 15°|30°|45°|60°|90°|120° | >0.9 | 100000 Hours | 865*1072*189 |
